This wizard appears when you select the Mailing Label layout in the Select Component for Page Report Tab dialog or Select Component for Page Report dialog and then click OK. It helps you to create a page report with a cross banded object in it, which is in the form of a mailing label layout, and consists of the following screens.
Back
Goes back to the previous screen.
Next
Goes to the next screen.
Finish
Finishes creating the mailing label report and closes this wizard.
Cancel
Does not retain changes and closes this wizard.
Help
Displays the help document about this feature.
Specifies the dataset used to create the banded object.
Resource box
Lists the available data resources in the current catalog. Select one to create the banded object.
More Options/Less Options
Shows or hides the dataset selection panel to choose a dataset for the banded object.
Specifies the data fields displayed in the banded object.
Resources
Lists all the available data resources.
Adds the specified field to use in the banded object.
Removes the specified field that is not required in the banded object.
Moves the specified field one step up.
Moves the specified field one step down.
Display Fields
Lists the fields that have been selected to display in the banded object.
Display Name
Shows the display names of the selected fields. You can click the name cells to edit them if required.
Sort Fields By
Opens the Sort Fields By dialog to specify how to sort data in the banded object.
Specifies the fields to group data in the banded object.
Resources
Lists all the available data resources.
Adds the selected field as the group-by field in the banded object.
Removes the selected group-by field that is not required.
Moves the specified group one step up.
Moves the specified group one step down.
Group By
Lists the fields that are used to group data in the banded object.
Sort
Specifies how groups at the specific group level will be sorted.
For example, if you placed a field named Region for grouping, and this field contains all 50 states of the United States; and if you want to see the data between Maryland (MD) and New York (NY), you can define the criteria by selecting the between operator to further define your grouping information.
Special Function
If the group-by field is of Numeric/String/Date/Time type, you can select a special function for the field in the Special Function column to further specify to which level the data will be grouped by.
If Customize is selected, the Customized Function dialog will be displayed, in which you can set the function by your own.
Custom Sort
Specifies how to sort the groups. Activated only when you have clicked Custom Sort from the Sort column to define the sorting manner of groups for the selected group level.
Special Group
Specifies how to group your information. Activated only when you have clicked Special Group from the Sort column to define a special group.
Select N
Opens the Select N dialog to specify the Select N condition.
Group Filter
Opens the Group Filter dialog to specify the group filter condition.

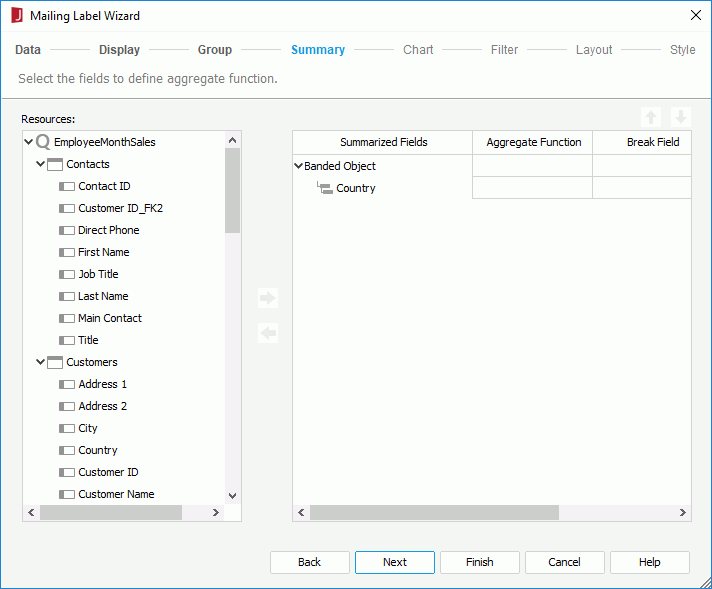

Specifies the fields on which to create aggregate functions.
Resources
Lists all the available data resources.
Adds the selected field as the summary field to the banded object.
Removes the selected summary field that is not required.
Moves the specified summary field one step up.
Moves the specified summary field one step down.
Summarized Fields
Lists all the fields that you want to display and to be summarized in the banded object.
Aggregate Function
Specifies the function to summarize the selected field.
Break Field
Displays a defined field on which the summary will be calculated. If a summary field is added below the Banded Object node, the break field is null and the summary will be calculated on the whole dataset.
Specifies to create a chart together with the banded object, which will be placed in the banded header panel. This screen is available only when there is at least one group-by field and one summary field which is calculated on this group-by field in the banded object.
No Chart
Specifies not to create a chart.
Bar Chart
Specifies to create a Clustered Bar 2-D chart together with the banded object.
Line Chart
Specifies to create a Line 2-D chart together with the banded object.
Pie Chart
Specifies to create a Clustered Pie chart together with the banded object.
Category
Lists the group-by fields of the banded object on which the summary fields are calculated. Choose the field you want to display on the category (X) axis of the chart from the drop-down list.
Series
Lists the fields that have been added as the group-by fields of the banded object. Choose the field you want to display on the series (Z) axis of the chart from the drop-down list.
Show Values
Lists the summary fields which are calculated based on the field you choose to display on the category axis of the chart. Choose the value you want to display in the chart from the drop-down list.
Specifies to filter data displayed in the banded object.
The options in the screen are the same as those in the Edit Filter dialog.
Specifies the layout of the banded object.
Label Size
Specifies the size for the labels in the banded object.
Gap Between Labels
Specifies the gap between each two labels.
Preview
Displays the selected layout for the label.
Specifies the style of the banded object.
Style
Specifies the style of the banded object.
Preview
Displays the selected style effects.
Create a Banded Report
Creates a restricted version of a flow layout report, one that can contain a single banded object only. This layout option is intended to provide compatibility with JReport Version 7 report templates.
Create a Flow Layout Report Containing a Banded Object
Creates a report that contains a banded object mapped to the specified dataset. This layout option is specified by default.
Page Setup
Opens the Page Setup dialog to specify page properties.
